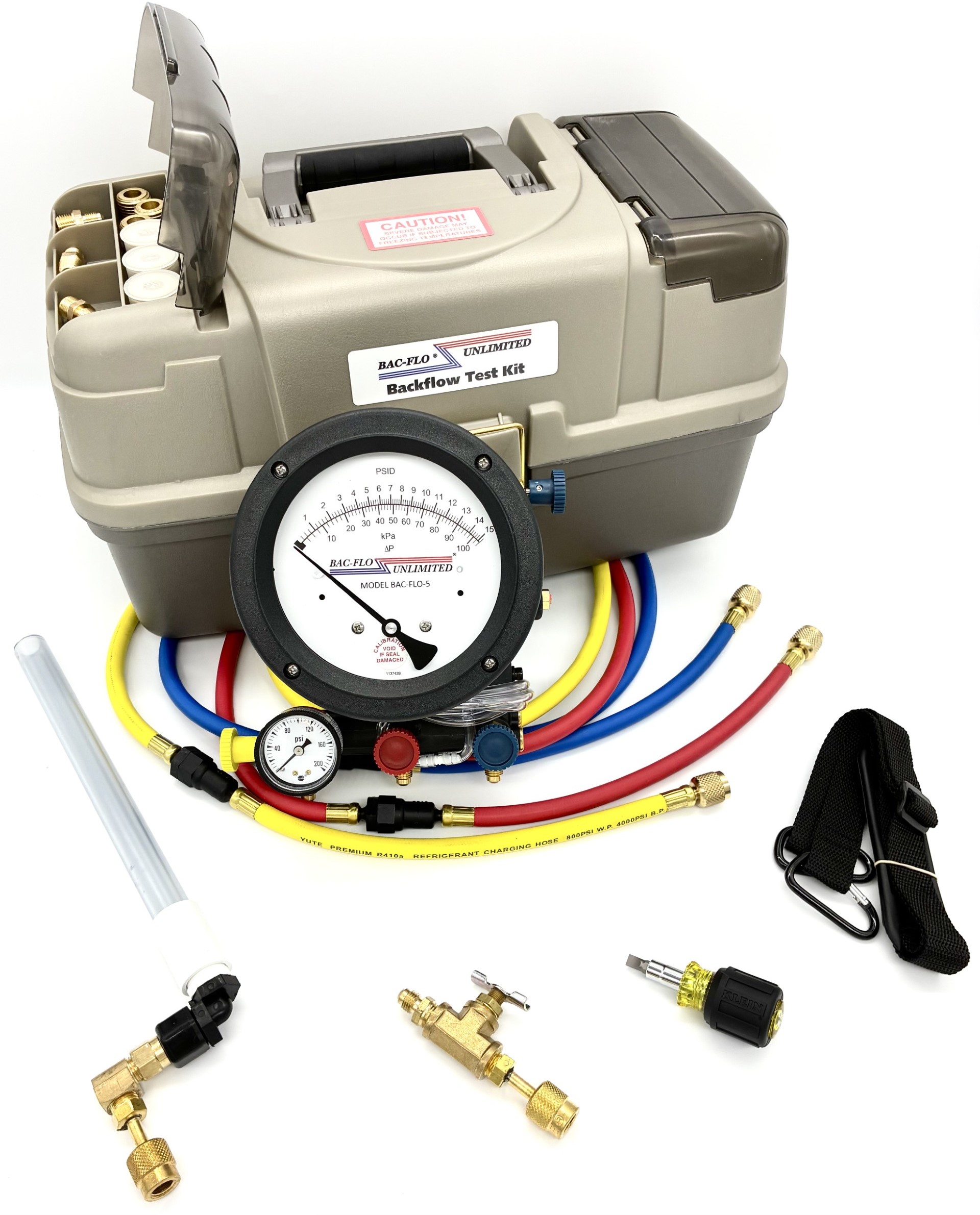

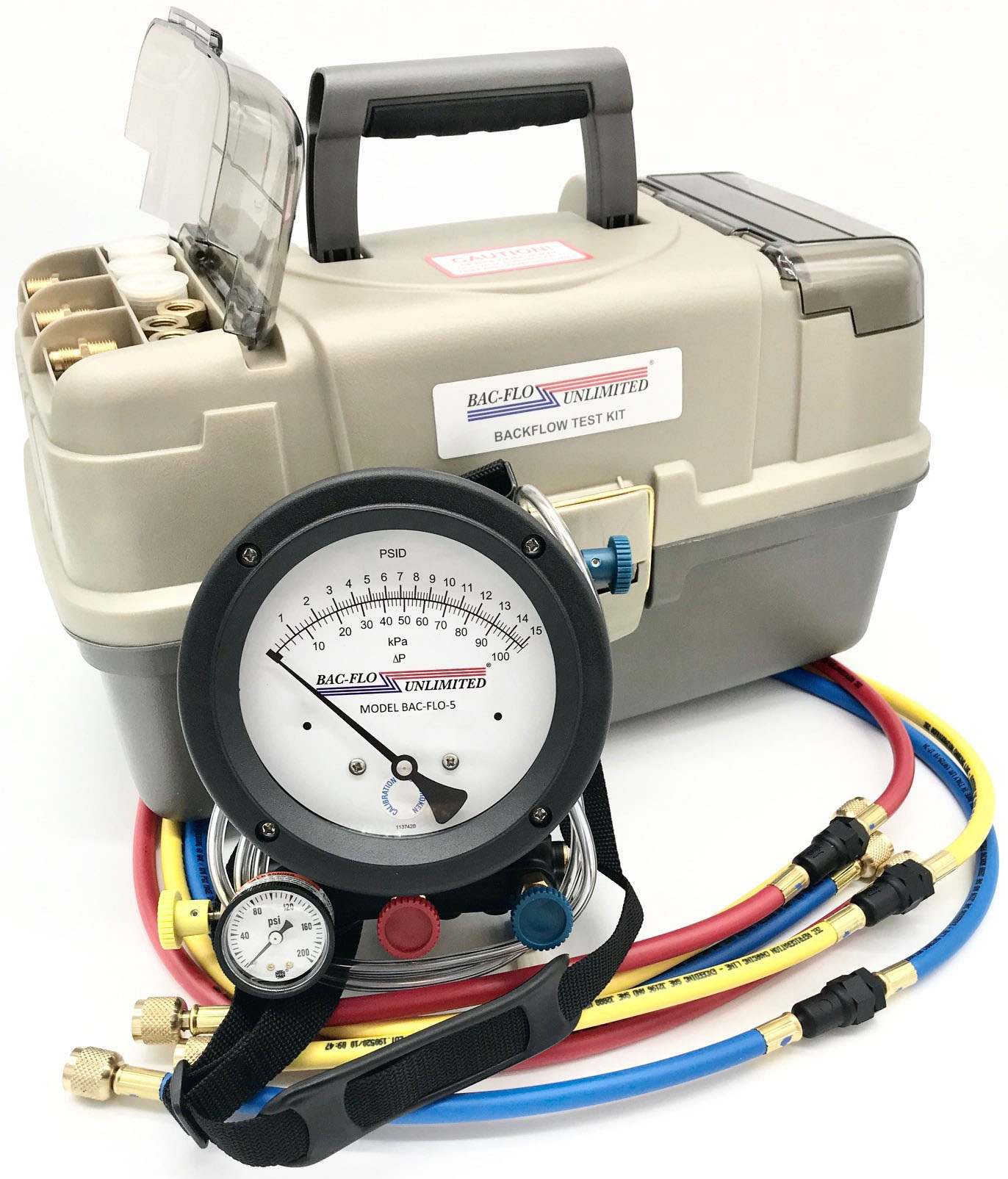

BAC-FLO-5 Five-Valve Backflow Test Kit

Product Details

This kit provides the functioning for testing all sizes and brands of backflow prevention assemblies. Five-valve gauge comes with calibration report valid for a full year. Test kit is capable of performing all known test procedures including those recommended by ABPA, ASSE, AWWA, CSA, USC-FCCCHR, NEWWA and UF-TREEO.

Specially Designed for Testing All Backflow Prevention Assemblies
Recognized by local Jurisdictions across the country
Made in the USA
5-Year Industry Best Warranty

$998.00

BAC-FLO-5 Features:

Popular Five-Valve Gauge for Ease of Testing
Soft-Seated Brass Needle Valves with replaceable valve seats
90 micron removable hose filters for gauge protection
Foam Padded Case with Storage Compartments
Test procedures are full page and laminated in clear plastic
Klein stubby screwdriver for testing in tight spaces

Specification Sheet

Gauge: Diaphragm Type Differential Pressure
Dial Size & Range (4 ½”) 0-15 PSID / 0-100 KPA
Accuracy ± .2 P.S.I.D. (Descending)
Working Pressure: 200 PSIG
Body Material: Glass Reinforced Engineering Thermoplastic.
Wetted Internals: EP Elastomers, Brass and 316 S.S. Metal Parts
Line Pressure Gauge: 1 ½” Diameter / Range: 0-200 PSIG

Hoses with Inline Filters & Schrader ¼” brass coupler end fittings
Hose Length: Three (3) each / 5’ long (color-coded).
Bleed Tube, One each / 4’ long clear bleed tube.
Adaptor Fittings: (3) sets of brass fittings provided for hookup to all standard size test cocks.
Gauge Weight: 3.6lbs / 1.6kg
Size: 18 ½” L x 9”W x 9 ¾” H
Approximate Shipping Weight: 11.5lbs
Temperature Limitations: Maximum 150°F/65°C.
